Electric Coffee Roaster Mod TE3000S/V – Standard

• Hot air roasting system
• n.4 resistences n.2 under the drum; n.2 in the back of the drum
• n.1 termocouple for outgoing roasting air
• Three different motors (drum – heating air – cooling tray)
• Control panel with digital thermo regulator
• Chaff collector
• Stainless steel or brass body
• Stainless steel cooling and mixing tank with direct discharge

AUTOMATIC SYSTEM: With this system the roaster contrlolled by PLC will starts the cooling cycle, discharges the drum and stop the electric elements automatically, once the coffee reaches the temperature set by the operator. One minute before the final temperature, a sound alarm will alert.

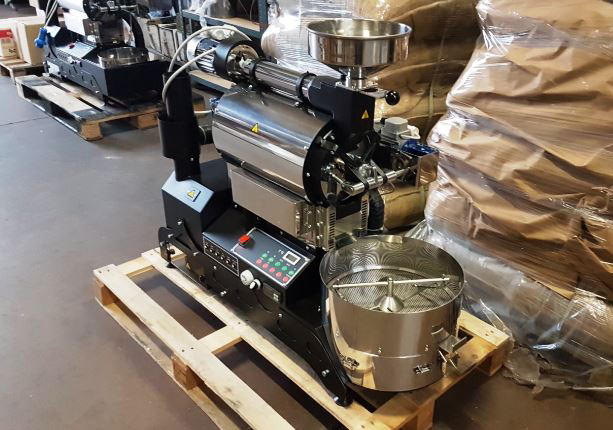

Electric Coffee Roaster Mod TE3000A/V – Automatic (PLC)

• Hot air roasting system
• n.4 resistences n.2 under the drum - n.2 in the back of the drum
• n.1 termocouple for coffee temperature
• n.1 termocouple for outgoing roasting air
• Three different motors (drum – heating air – cooling tray)
• Automatic Control Panel (PLC)
• Chaff collector and stainless steel body
• PLC connection by USB port
• Stainless steel cooling and mixing tank with direct discharge

• Modification of the motor / gearmotor on the back of the machine, with inclusion of bronze gear.
• Modification of the cooling tank : round with holes only on the base to improve the cooling of the coffee.
• Powerful of the motor-cooling tank.
• Technical improvement in the automatic system with insertion of the compressed air system.
• Insertion, on request, of the mixer into the cooling tank.
• Modification of the air flow inside the chaff collector, with inclusion of doors for cleaning and inspection.
• Improving the aesthetic finishes of the roaster.
• Enlargement of the flues to improve the oxygenation of the product.
